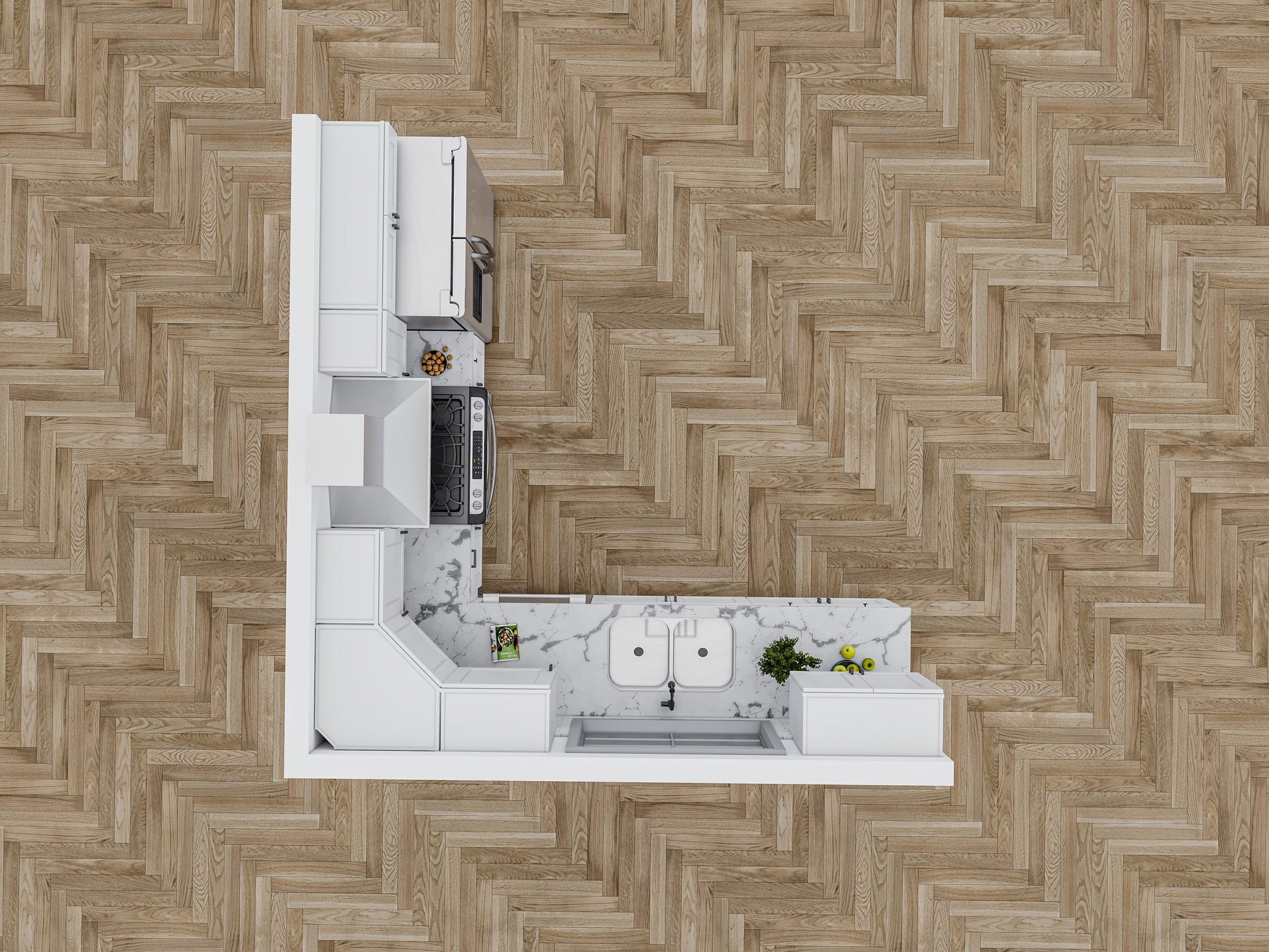

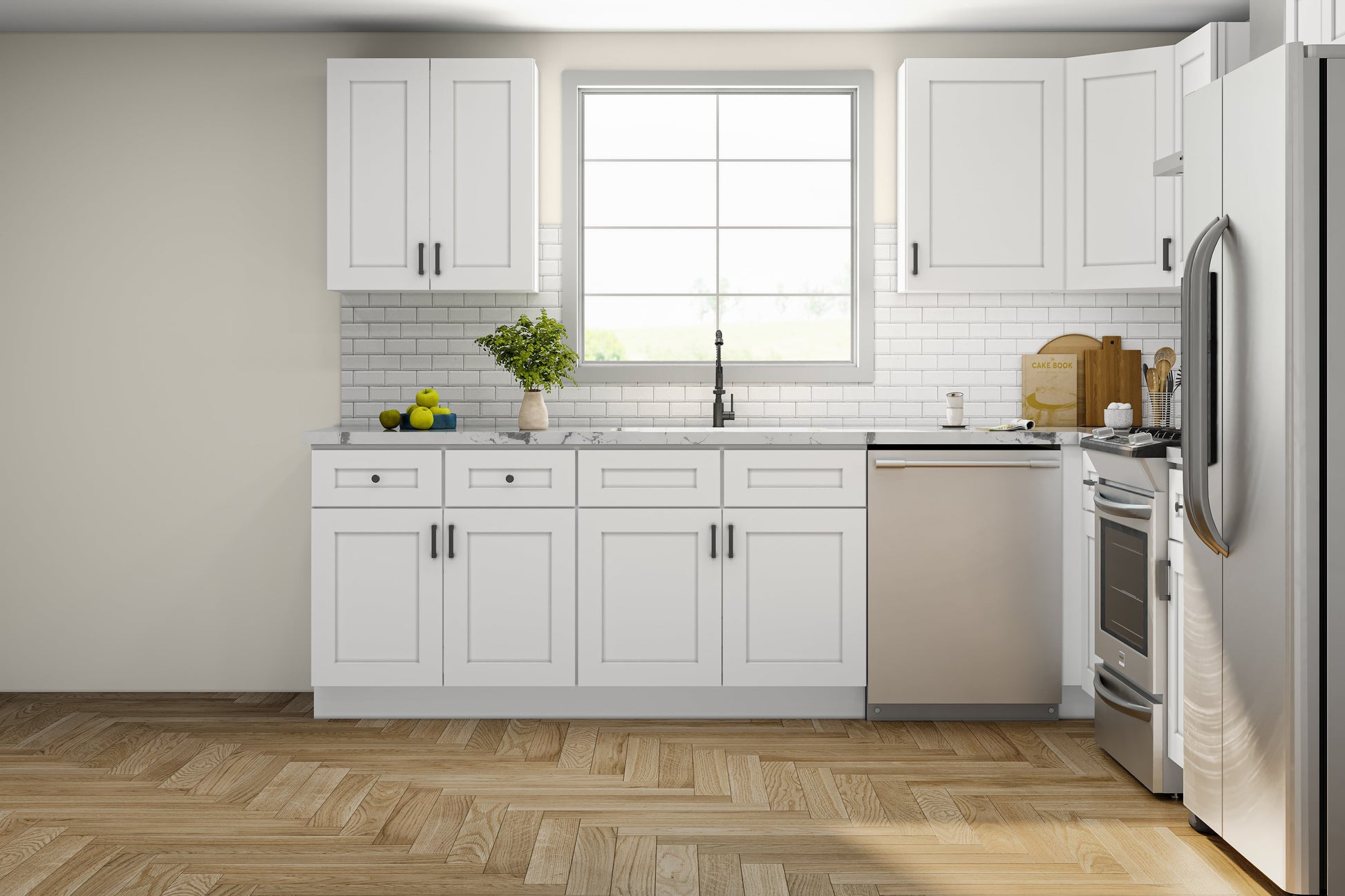

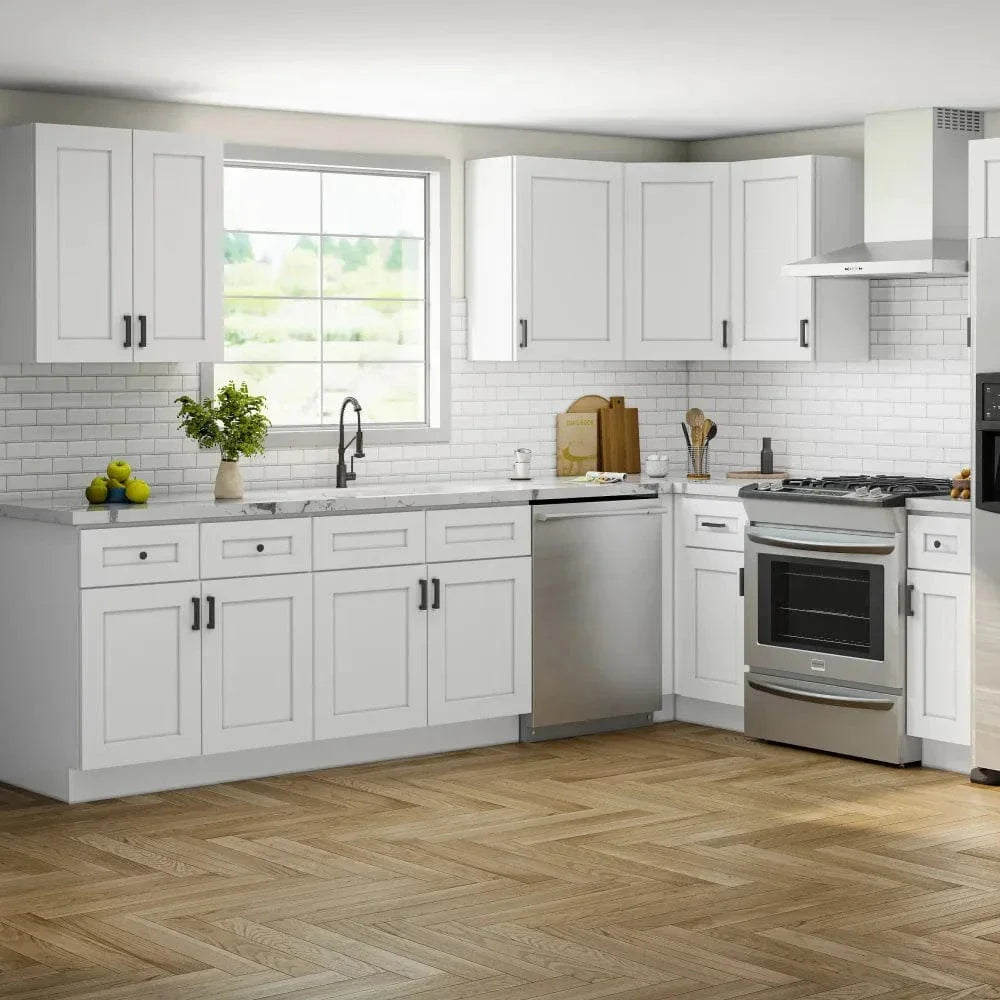

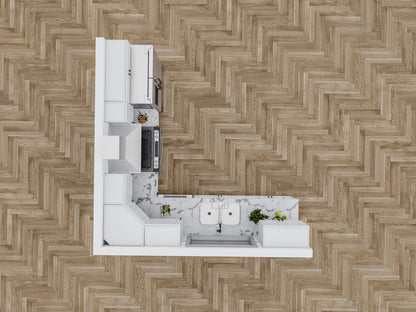

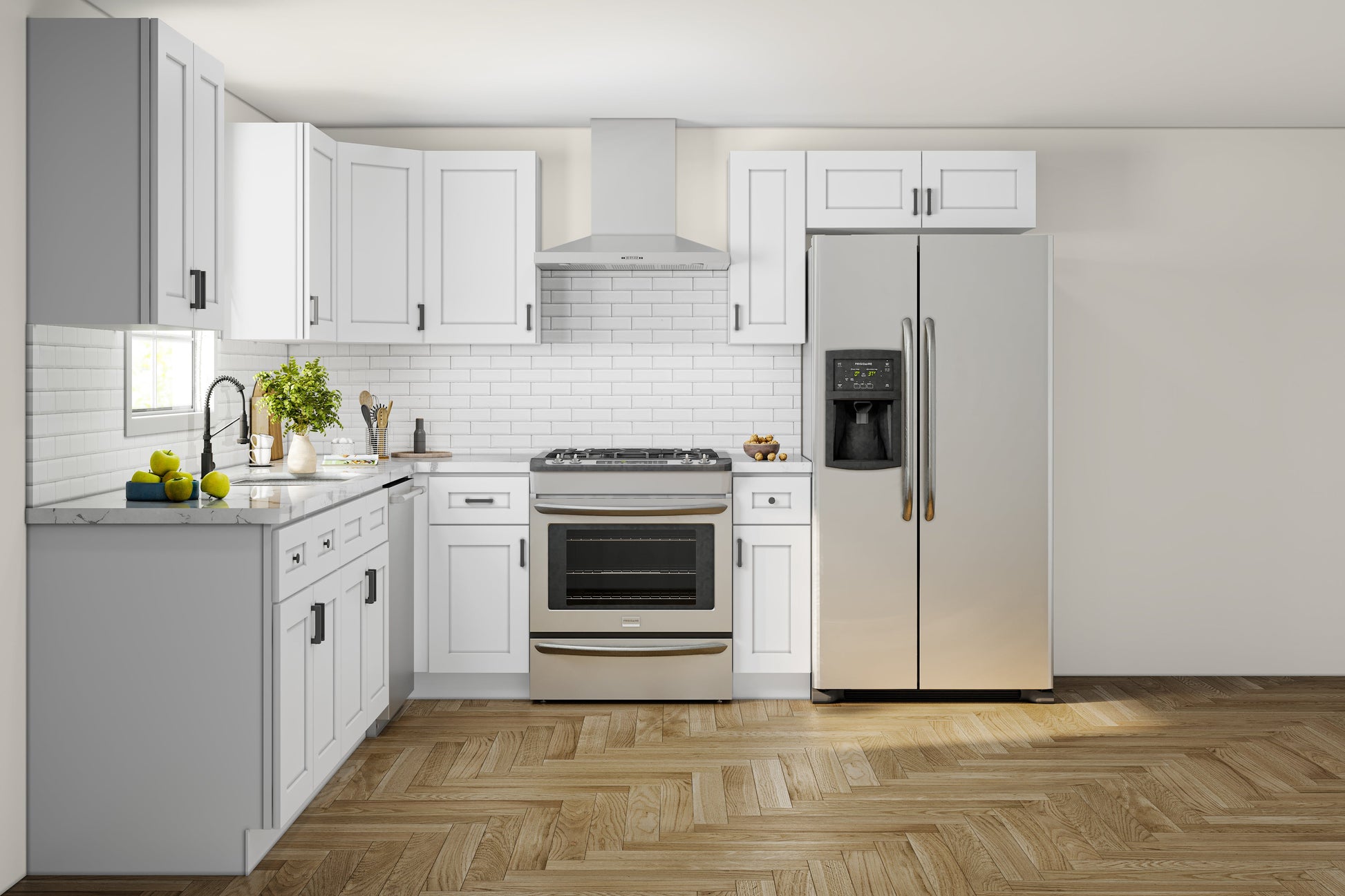

L-shaped kitchen cabinet measuring 120 inches left side by 120 right side and 96 wall height.
L-Shape 10 feet by 10 feet kitchen cabinet combination. Ideal for kitchen walls that fit at least 84 inches in height. 3/4"-thick solid wood; full overlay door and 6-way adjustable; soft-close metal; hidden Euro-style.
Parts used in ( SKU ) White shaker L-Shape 10x10 with 84 inches in height kitchen set:
(1) W1830 - Single Door Wall 30" by 18" Wide Shaker White Cabinet
(1) W1230 - Single Door Wall 30" by 12" Wide Shaker White Cabinet
(1) W3612 - Double Door Wall 12" by 36" Wide Shaker White Cabinet
(1) W2730 - Double Door Wall 30" by 27" Wide Shaker White Cabinet
(1) W2130 - Single Door Wall 30" by 21" Wide Shaker White Cabinet
(1) WDC2430 - Diagonal Corner Wall 30" by 24" Wide White Shaker Cabinet
(1) BBC39 - blind corner Base 42" to 45" Wide Shaker White Cabinet
(1) B12 - Base Single Door One Drawer 12" Wide Shaker White Cabinet
(1) B33 - Base Double Door Two Drawer 33" Wide Shaker White Cabinet
(1) SB36 - Sink Base Double Door 36" Wide Shaker White Cabinet
(1) BF3- Base Filler 3" Wide Shaker White Cabinet
(2) TK8 - Toe Kick Molding 96"W x 4 1/2"H Shaker White Cabinetry
Specifications
- Door Panel: 3/4"-thick solid wood; full overlay door.
- Door Hinge: 6-way adjustable; soft-close metal; hidden Euro-style.
- Adjustable Shelf: 3/4”-thick cabinet-grade plywood; clear coat finish on all sides and edges; with metal shelf rests.
- Drawer: 5/8”-solid wood on all sides; dovetail construction.
- Drawer Glide: full extension pull-out; soft-close metal; concealed under-mount.
- Plywood Box: 1/2” to 5/8”-thick cabinet-grade plywood; clear coat finish on interior sides; matching color finish on exterior sides.
- Metal Bracket: corner bracket reinforcements in base cabinets for maximum stability.
- Door Bumper: promotse quiet-closing and reduce slamming for maximum durability.
RTAHQ.com (warrantor) warrants its kitchen cabinet collections to be free from defects in material or workmanship for a period of
one year. RTAHQ.com, at the their choice, may elect to repair or replace RTAHQ.com products covered by this warranty.
This warranty does not apply to where items have been improperly stored or improperly installed. This warranty does not cover
the following: costs of removing warranted material or the installation of replacement material, natural variations and aging
inherent in wood, normal wear and tear or damage/defects caused by misuse, abuse, negligence, or modification in any way.
RTAHQ.com reserves the right to inspect claimed defective products. No returns, replacements or repairs may be made without
prior to inspection or proof of defective product. Some replacement parts may vary from those originally supplied and are
subject to availability.
This warranty is the sole warranty of RTAHQ.com and in lieu of all other warranties, express implied, including any implied warranty
of merchantability and fitness for a particular use. Labor charges by customer's contractor for removal of or installation of
warranted material as well as incidental or consequential damages are excluded. We do not assume any other liability in
connection with the sale of your product.
Door Considerations:
The purchaser agrees to let doors that are warped or have panel shrinkage a 1/4" or less to hang for two season (Spring, Fall)
before replacement is requested. Typically a door will return to its normal position once it is acclimated to temperature and
humidity conditions. Prior to requesting a replacement for a door, please be sure the door has been installed properly.
Please be advised that wooden boards used for cabinetry are a natural material cut from trees that adapt to different climates and weather conditions, and inherently will expand and contract. It is normal for wood to expand and contract under different temperatures and humidity levels causing small (1mm – 5mm) spaces to appear on the mitering seam locations. Maple wood is close grained and strong. It has off-white, pale streaks of gold and pink and may contain dark streaks throughout the wood.
Colors on the product images may look different on different models/brands of computers and depending on how their monitors are calibrated. Therefore, actual product color may vary from the product on images. To see the actual color of kitchen cabinets you may visit our showroom or order a door sample.
All cabinets are shipped knock-down unassembled unless an assembly service is requested at checkout.
